Strong, Lightweight Square Carbon Fiber Roll Wrapped Tubes - 100% 3K

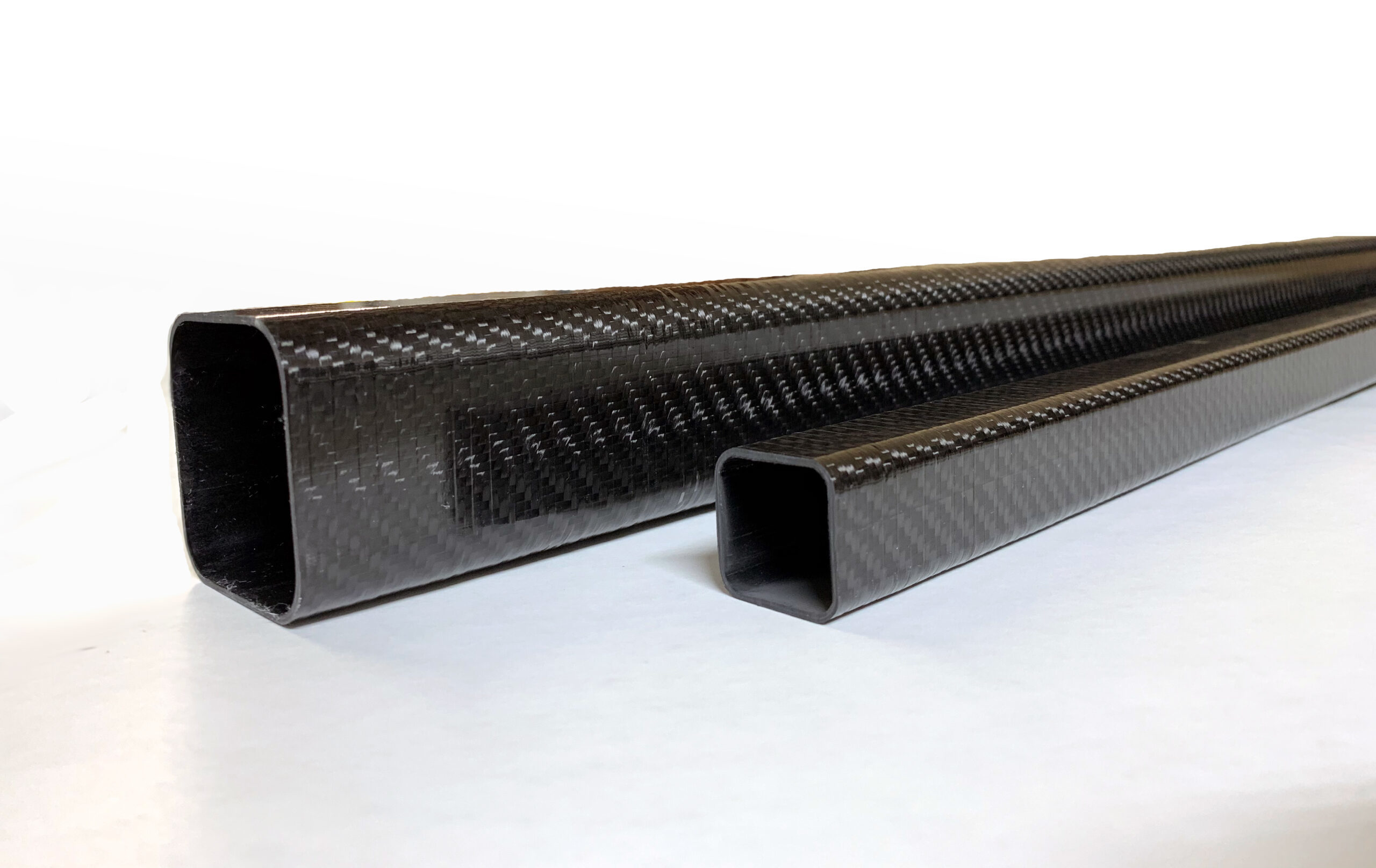

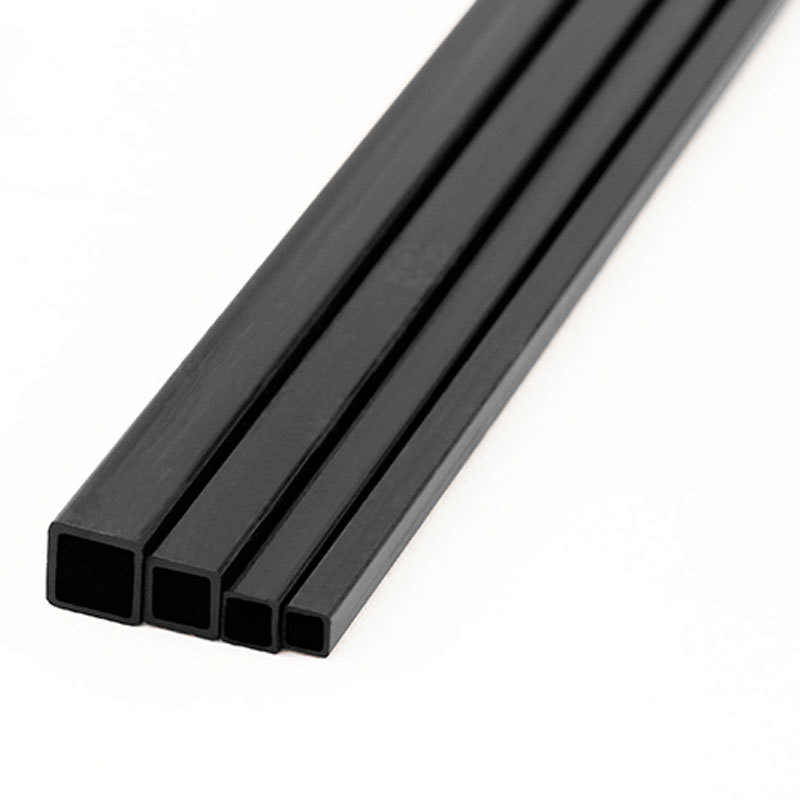

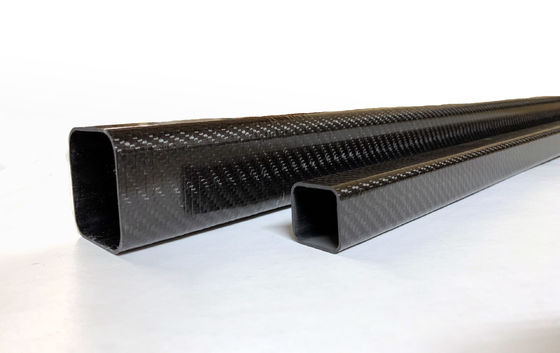

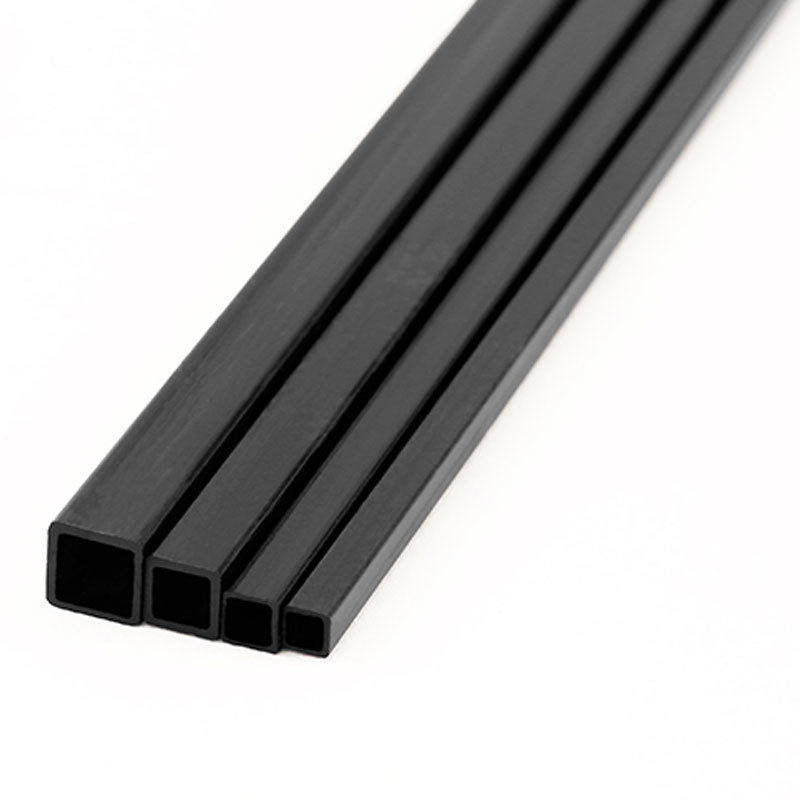

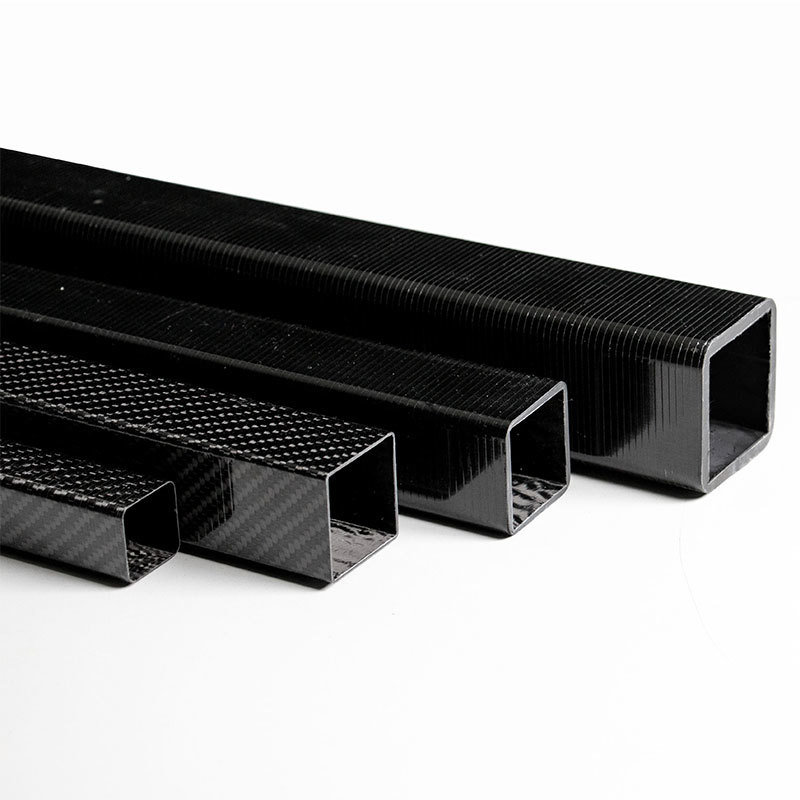

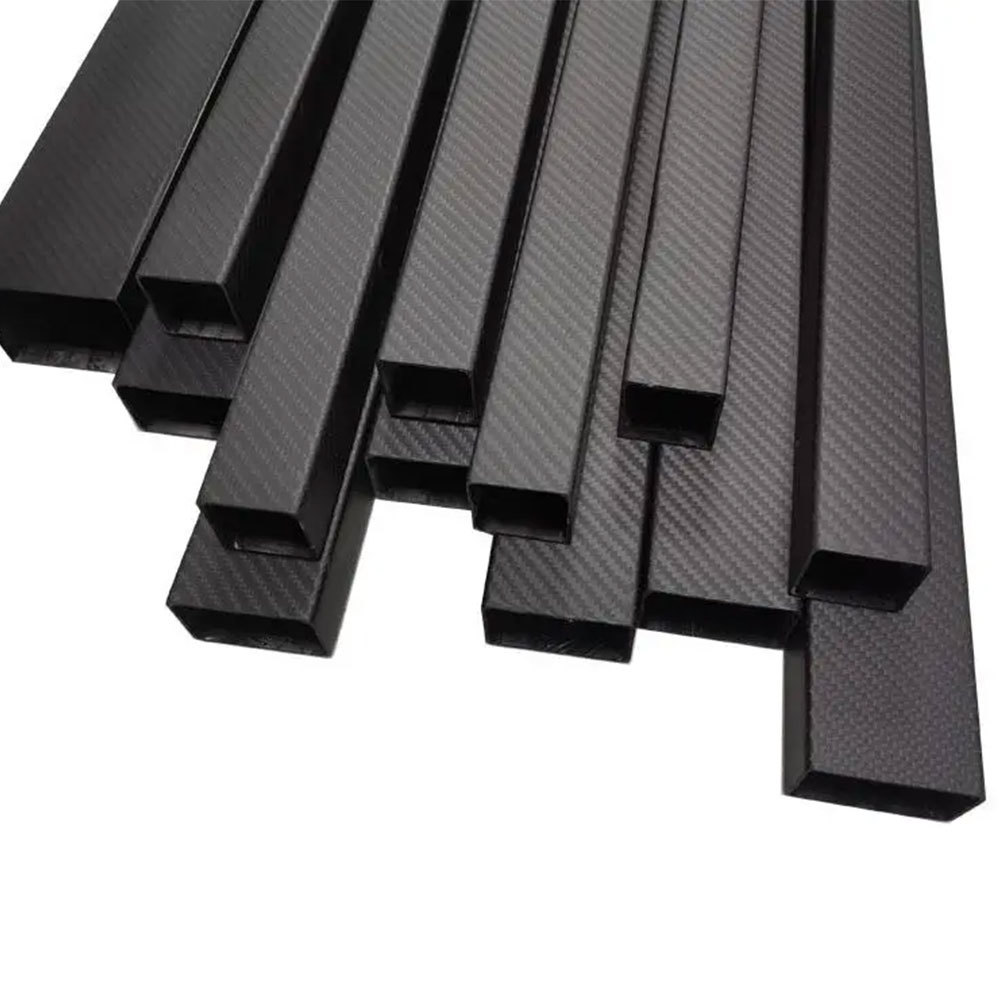

Carbon fiber square tube, made entirely of high-quality carbon fiber. It is real carbon fiber, pressed and cured in the oven. With constant thickness, very high hardness and very little weight. If what you are looking for are the benefits of the carbon tube, this is your product. If you need a tube with other lengths, diameters or thicknesses, do not hesitate to contact us, we can manufacture it.

Square Carbon Fiber Tubes are manufactured with high-strength, medium-modulus unidirectional carbon fiber prepreg, with the majority of the fibers positioned along the length of the tube. The unidirectional layers are wrapped around a mandrel and oriented in a 0/90 degree orientation and cured at high temperatures and pressure. This type of construction offers a high stiffness-to-weight ratio tube with increased bending stiffness and axial strength, a high crush resistance and tight inner diameter (ID) tolerances.

The Square Carbon Fiber Tubes have an outermost layer of 2×2 twill fabric which gives the tube a few advantages including better machinability, reduced splintering and the decorative aesthetics associated with carbon fiber. All our roll wrapped tubes feature a slight rib texture spiraling along their length where shrink-tape has been used in the manufacturing process. If need be, this can easily be sanded and polished away.

Carbon square tubes or carbon square tubes or carbon rectangular tubes are particularly suitable for many applications. These CFRP pipes are very interesting not only because of the visually appealing design, but also because of the easy adaptability with existing systems. The excellent material properties are convincing in many areas of application and thus represent the decisive advantage.

The various square CFRP carbon tubes not only differ in terms of their overall dimensions, but are also available with different corner radii and in reinforced versions. Of course, we also offer our cutting service or complex processing for all tubes in these categories square tubes / square tubes. This enables you to realize your lightweight constructions quickly and professionally.
